Highlights
360° obstacle detection for enhanced flight safety
Detects thin obstacles like wires and branches in low visibility
Ideal for complex environments and low-altitude operations
Seamless integration with Matrice 300 RTK
Detailed Specifications
General
- Compatibility: DJI Matrice 300 RTK, Matrice 350 RTK
- Ingress Protection: IP45
Radar System
- Detection Range: 1.5 - 30 meters (5 - 98 feet)
- Horizontal Coverage: 360°
- Vertical Coverage: 60°
- Upper Coverage: 45°
- Operating Frequency: 24 GHz
Application Scenarios

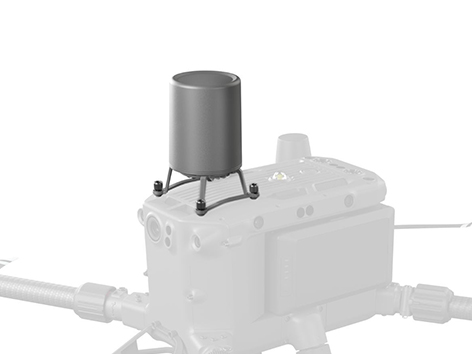

CSM Radar
Features and Performances
Detects Thin Obstacles
The CSM Radar excels at detecting thin obstacles such as wires, powerlines, and branches, which are often difficult for drone vision systems to identify.
Enhanced Situational Awareness
The radar complements the drone’s existing obstacle avoidance system, covering blind spots and providing a more comprehensive understanding of the surrounding environment.
Comprehensive Coverage
With 360° horizontal coverage, the CSM Radar provides a wide field of view for obstacle detection.
Braking and Warning System
The radar allows users to set a pre-defined braking distance, automatically stopping the drone when it approaches an obstacle. It also features a warning system with an audible alert.
Nighttime Operations
The CSM Radar can operate effectively at night, when the drone’s vision system may be limited.
